Automotive

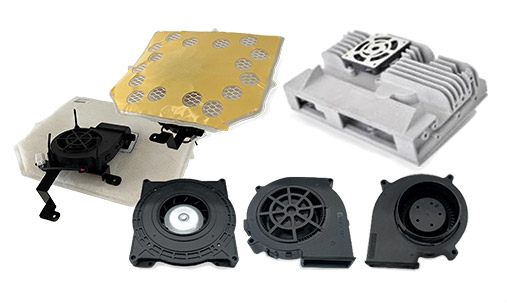

With more than 20 years of dedication and recognition from global OEMs, Y.S. TECH has accumulated excellent experience in core technology areas: "Aero / Fluid Dynamics", "Thermal/Heat Dissipation Solutions", "Psycho-Acoustics & Vibration Analysis", "Air / Aqua Purification & Comfort ", "Two-Phase Coolant & Liquid Cooling Solutions" and "AIoT & LIN / CAN Smart Control". These capabilities are widely used in solution such as Head Unit, Seat Ventilation, LiDar, DC / DC Convertor, Battery Cooling, Head Lights, and HUD.
Y.S. TECH provides not only products, but also highly integrated engineering capabilities and agile manufacturing efficiency, we support customers respond quickly to market changes. As your best partner, Y.S. TECH is not just a product supplier, but the best partner who thinks from the customer's perspective and continuously creates value.
Applications

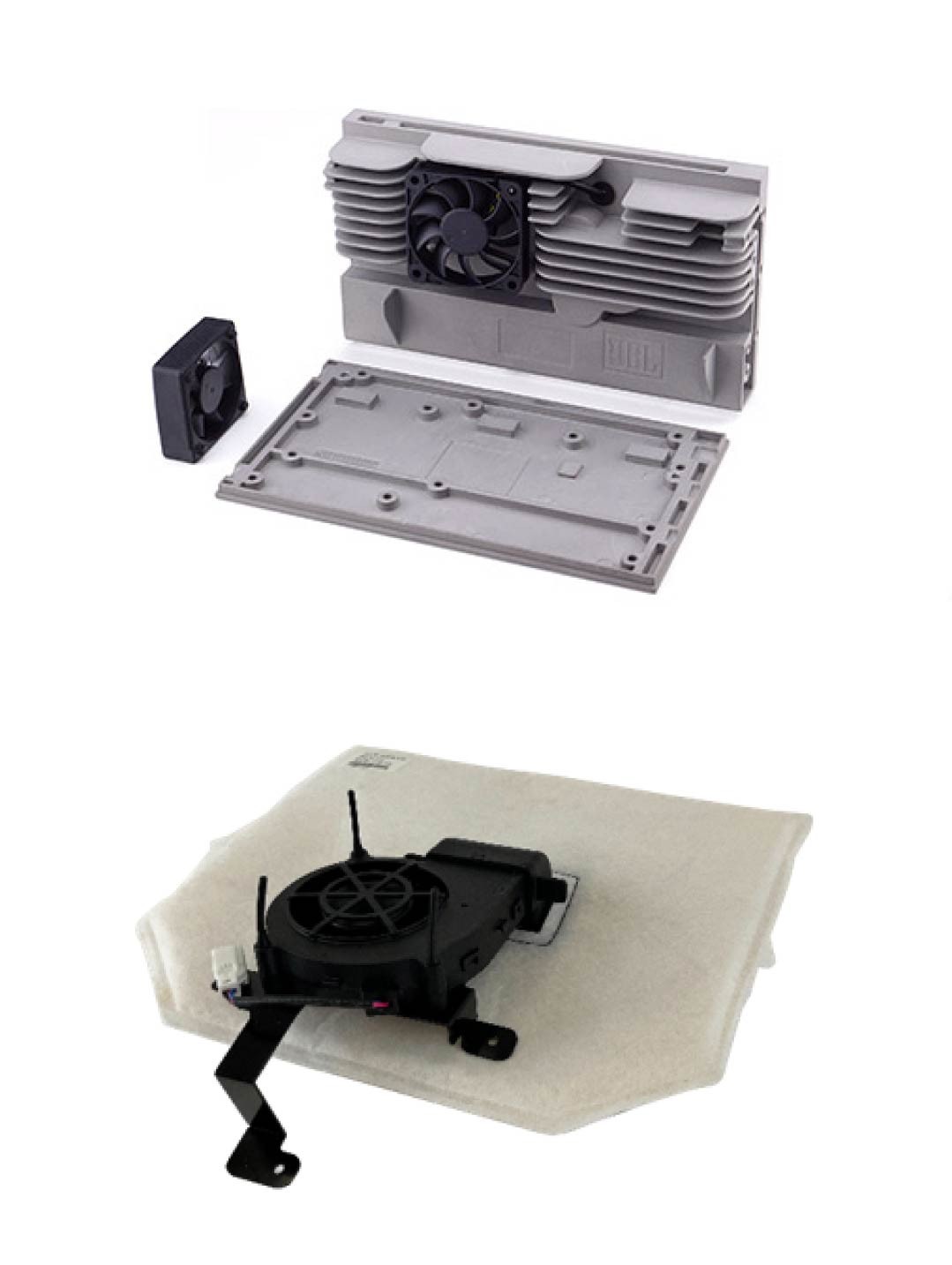

Seat Ventilation
Automotive Air Purifier
PM 2.5 Sensor Devices
Fragrant System Other Comfort & Healthy Devices
Major Specifications
Rated Voltage: 9.0VDC ~ 24.0 VDC
Dimension: 40mm ~ 100mm ( Axial & Blower)
Top: -40 ~ 90℃
Air Flow: 0.8CFM ~ 22.5CFM
Static Pressure: 4.9mm-H2O ~ 14.6mm-H2O
Noise Level (1m): 24dBA~51dBA
Weight: 34g ~ 116g
Engineering Support
- Tier 1 Standards: GS95002, MBN LV124, LV148, GMW 3097, VW80101
- Anti-vibration support
- Smart Control with LIN & CAN BUS support
- Safety & Reliability:
- Motor locked-off & re-start up(2-10sec)
- Over-Voltage protection
- Low-Voltage protection
- Current-Limiting protection
Purifying Solution
Applications

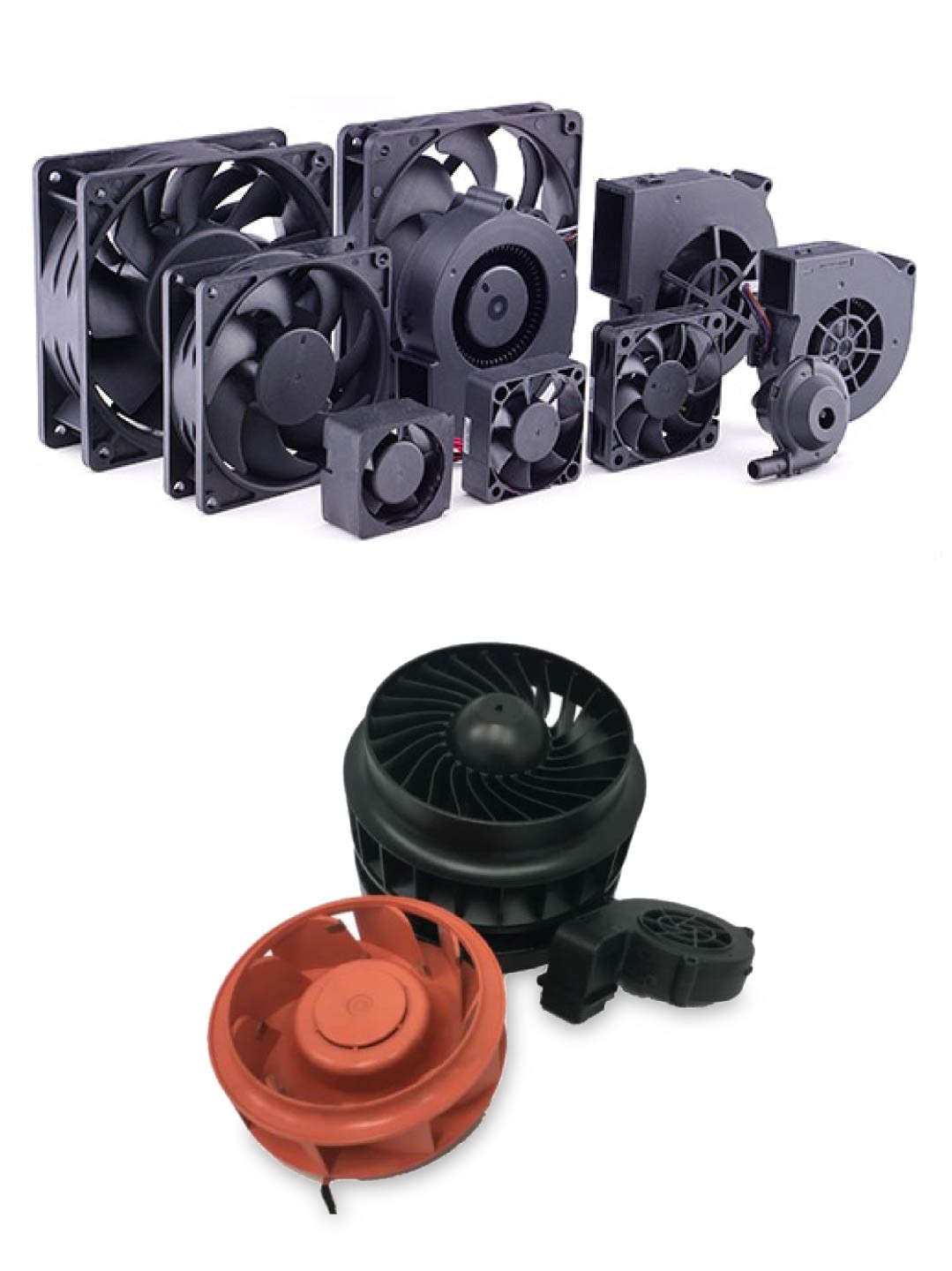

SHVAC System & Ventilation Blower System
based Air Purifier
HEPA (Anti-PM2.5, Anti-Bacteria ) VOC solutions
Major Specifications
Rated Voltage: 12VDC ~ 13.5VDC
Dimension: 97mm ~ 156mm ( Axial & Blower)
Top: -40 ~ 85 ℃
Air Flow: 25CFM ~ 268CFM (450CFM, optional)
Static Pressure: 22mm-H2O ~ 28mm-H2O
Noise Level (1m): 40dBA ~ 73dBA
Weight: 160g ~ 1.2Kg
Engineering Support
- Tier 1 Standards: GS95002, MBN LV124, LV148, GMW 3097, VW80101.
- Upwind Start-up, LIN & CAN Smart Control
- Soft Start-up (Tramp up: 3-5 sec)
- Safety & Reliability:
- Motor locked-off & re-start up( 2-10sec)
- Over-Voltage protection
- Low-Voltage protection
- Current-Limiting protection
Air-Purifying Solution
H2SO4 Impregnated Active Carbon:
CnHxO + H2SO4 → H2O↑+ S(element) + CnHxOy + 3[CnHxOy+3] + NH3 → [NH3 ∙∙∙Oy+3 CnHx] H2SO4 + 2NH3 → (NH4)2SO4
HEPA Filter:
Anti-PM 2.5, Anti- Bacteria
Multi-Deodorized:
3HCHO + 4KMnO4 → 3CO2 + 4MnO2 +H2O
SO2 + 2KMnO4 → K2 SO4 + 2MnO2 + O2
Interior Electronic
Applications
Head Unit HUD / Projector
Battery Charger
Entertainment System / Amplifier
Other Electronics Devices
Major Specifications
Rated Voltage: 5VDC ~ 13.2VDC
Dimension: 25mm ~ 60mm. ( Axial & Blower)
Top: -40 ~ 90 ℃
Air Flow: 2CFM ~ 10CFM
Static Pressure: 3.7mm-H2O~15.3mm-H2O
Noise Level (1m): 18 dBA ~ 41dBA
Weight: 8g ~ 65g
Engineering Support:
- Tier 1 Standards: GS95002, MBN LV124, LV148, GMW 3097, VW80101
- Anti-vibration support
- Smart Control with LIN & CAN BUS support
- Safety & Reliability:
- Motor locked-off & re-start up(2-6sec)
- Over-Voltage protection
Applications

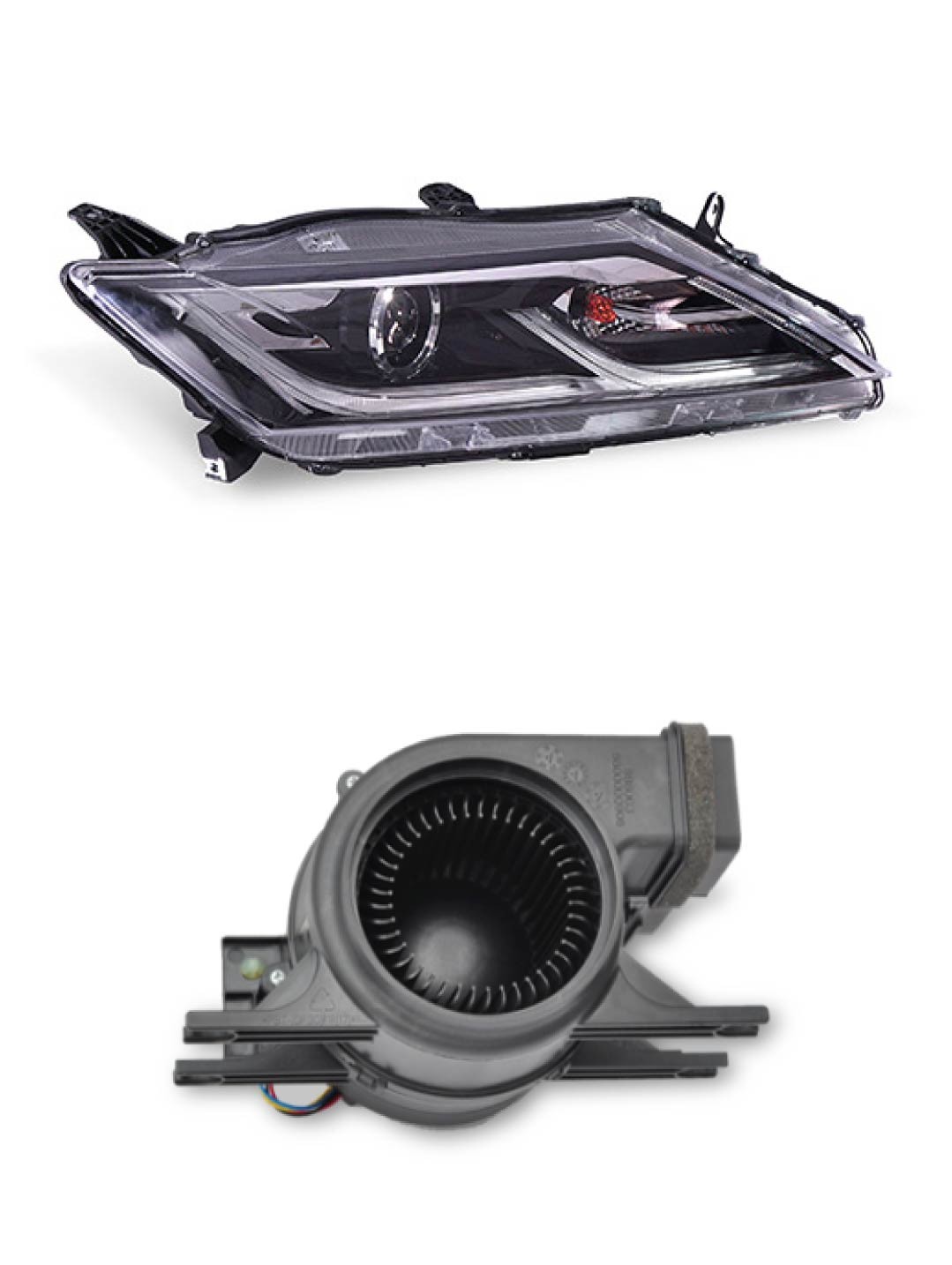

Head Lighting
BSG System
Battery Cooling & Ventilation
DC-DC Convertor
Charger Station& Healthy Devices
Major Specifications
Rated Voltage: 12VDC ~ 13.5VDC.
Dimension: 40mm ~ 200mm ( Axial & Blower)
Top: -40 ~ 105℃
Air Flow: 8CFM~200CFM
Static Pressure: 9.7mm-H2O~31mm-H2O
Noise Level (1m): 34dBA ~ 64dBA
Weight: 34g ~ 836g
Engineering Support
- Tier 1 Standards: GS95002, MBN LV124, LV148, GMW 3097, VW80101
- Anti-vibration support
- Smart Control with LIN & CAN BUS support
- Safety & Reliability:
- Motor locked-off & re-start up (2-10sec)
- Over-Voltage protection
- Low-Voltage protection
- Current-Limiting protection
