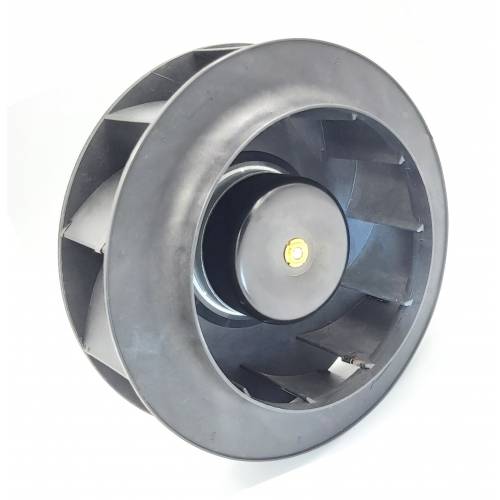

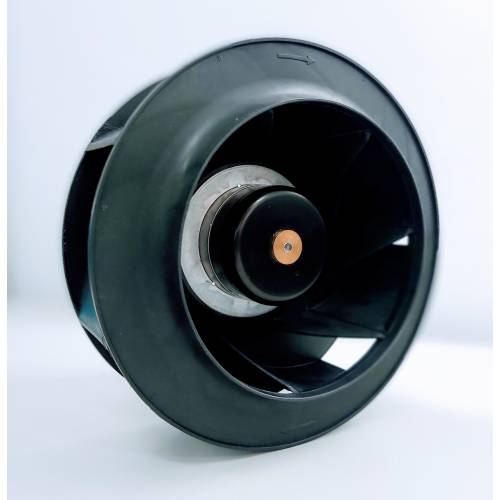

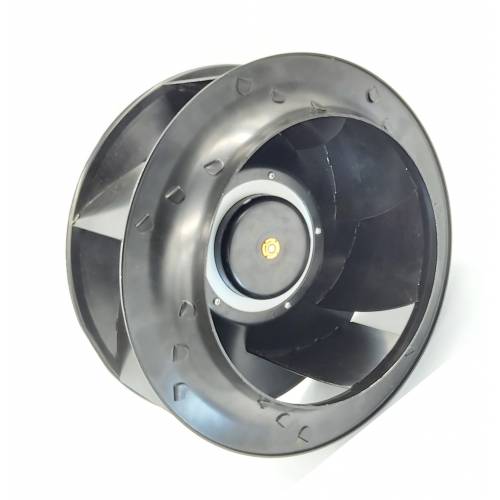

EC 225mm backward centrifugal fan
QV222563HBL-9A2
Maximum airflow最大風量: 849 CFM
Maximum static pressure最大靜壓: 3.47 inAQ
Material材料:
Impeller扇葉: Glass fiber-reinforced polypropylene玻纖強化聚丙烯
Motor shell馬達殼: Diameter 直徑 92mm, Steel, electro deposited black電著黑鋼材
Direction of rotation轉動方向: CW view toward rotor看自入風口為順時針
Number of blades葉片數: 7
Degree of protection防水防塵等級: IP65
Mode of operating操作模式: Continuous operation S1連續操作 S1
Insulation class絕緣等級: B
Installation position安裝方向: Any任何
| no. | Model | bearing | Rated Voltage (VDC) |
operating voltage range (VDC) |
Speed (RPM) |
Max. Airflow (CFM) |
Max. Static Pressure (mm-H2O) |
Current (mA) |
Life at 40°C L10 (Hour) |
Noise Level dB(A) |
Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | QV222563HBL-9A2 | 2B | 230VAC | 200~240VAC | 3100 | 849 | 88.14 | 0.67 | 50000 | 72.5 | 1925 |
2B : 2-ball bearing BS : 1-ball 1-slee bearing L : Sintetico bearing S : Sleeve Bearing
