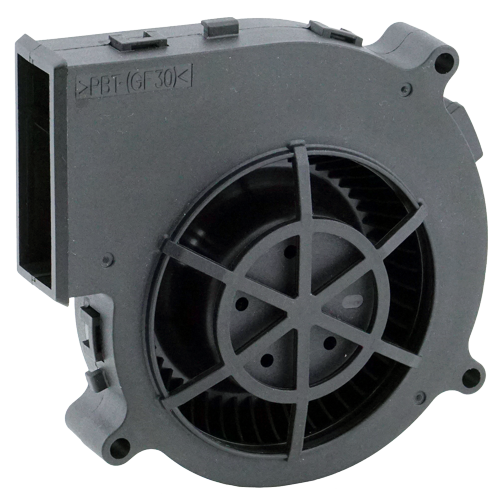

BD7820
72.6x78.2x22.3
*Airflow: 14.16 CFM
*Static Pressure: 47.85 mm-H2O
*Blade / Housing:
Plastic Material UL 94V-0 P.B.T.
*Lead Wire: UL1569 #22 AWG
*Weight: 80.0g
| no. | Model | bearing | Rated Voltage (VDC) |
operating voltage range (VDC) |
Speed (RPM) |
Max. Airflow (CFM) |
Max. Static Pressure (mm-H2O) |
Current (mA) |
Life at 40°C L10 (Hour) |
Noise Level dB(A) |
Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | BD127820EB | 2B | 13.6 | 9~16.0 | 6100 | 14.16 | 47.85 | 620 | 65000 | 51.2 | 80.0 |
2B : 2-ball bearing BS : 1-ball 1-slee bearing L : Sintetico bearing S : Sleeve Bearing
